Subaru Legacy BN/BS (2015-2019) Service Manual: Stop light system wiring diagram

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiring system / Stop light system wiring diagram

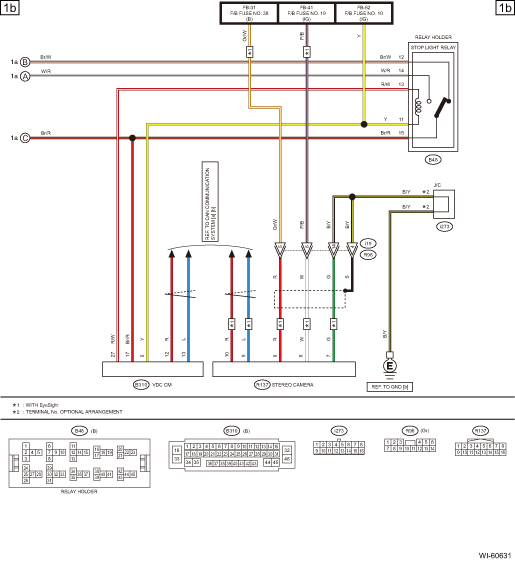

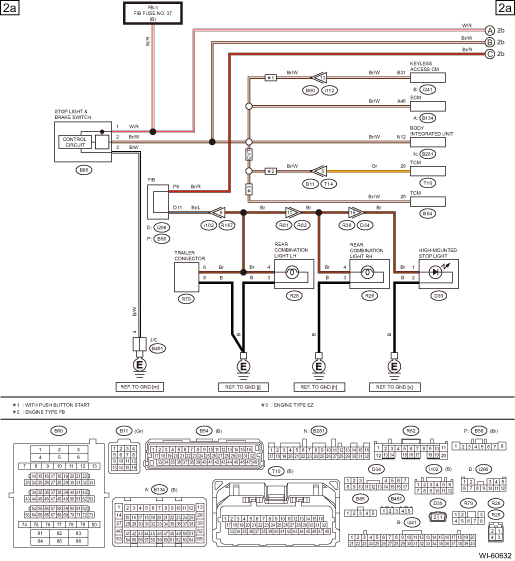

1. SEDAN MODEL

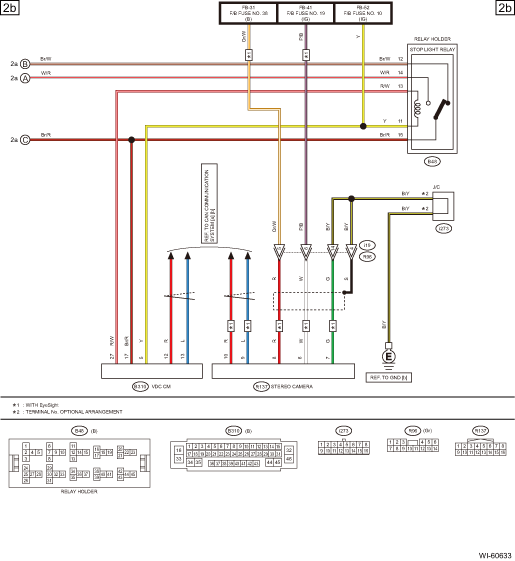

2. OUTBACK MODEL

Starter system wiring diagram

1. ENGINE TYPE FB (WITHOUT PUSH BUTTON START)2. ENGINE TYPE FB (WITH PUSH BUTTON START)3. ENGINE TYPE EZ (WITHOUT PUSH BUTTON START)4. ENGINE TYPE EZ (WITH PUSH BUTTON START) ...

Sunroof control system wiring diagram

...
