Subaru Legacy BN/BS (2015-2019) Service Manual: System block diagram

Subaru Legacy BN/BS (2015-2019) Service Manual / Eyesight (diagnostics) / Control module i o signal / System block diagram

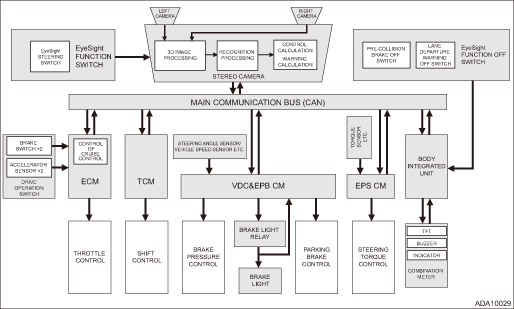

Main signals used between stereo camera and relevant CM

Electrical specification

1. STEREO CAMERATerminal No.ContentMeasuring conditionStandard(R137) No. 1 — — — (R137) No. 2 — — — (R137) No. 3 — — — (R137) No. 4 — — — (R137) No. 5 — — — (R1 ...
