Subaru Legacy BN/BS (2015-2019) Service Manual: Weather strip replacement

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior body panels / Weather strip replacement

1. FLANGE

1. Remove the weather strip - body side flange while pulling the rubber. Be careful not to tear the rubber.

2. Replace the weather strip - trunk lid while pulling the rubber. Be careful not to tear the rubber.

NOTE:

While removing the weather strip - trunk lid, be careful not to allow adhesive to contact the trim panel - roof assembly and trim panel - trunk side.

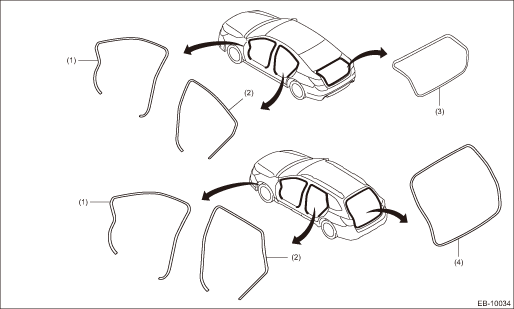

(1)	Weather strip - body side flange front	(3)	Weather strip - trunk lid (sedan model)	(4)	Weather strip - rear gate (OUTBACK model)
(2)	Weather strip - body side flange rear

2. DOOR

1. Remove the weather strip after removing the clip. Be careful not to tear the rubber.

CAUTION:

If the weather strip clip is removed with excessive force, the weather strip may be damaged. Be sure to use clip remover to remove.

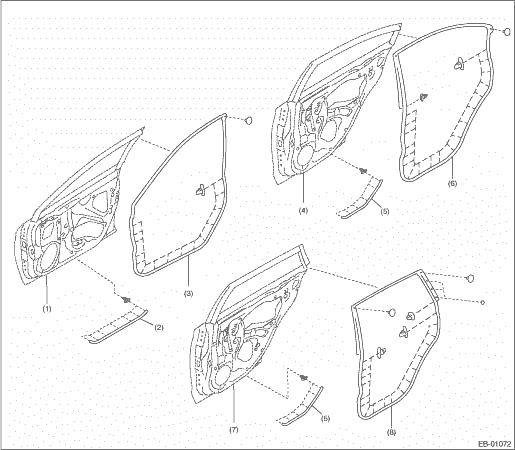

(1)	Panel ASSY - front door	(4)	Panel ASSY - rear door (sedan model)	(7)	Panel ASSY - rear door (OUTBACK model)
(2)	Weather strip - front door LWR	(5)	Weather strip - rear door LWR	(8)	Weather strip - rear door (OUTBACK model)
(3)	Weather strip - front door	(6)	Weather strip - rear door (sedan model)

Protector tape installation

(a)Panel ASSY - rear door end(c)4 mm+0 mm −4 mm (0.16 in+0 in −0.16 in)(e)Push the application tape end against the panel assembly - rear door end.(b)Push the application tape end against ...
