Subaru Legacy BN/BS (2015-2019) Service Manual: Protector tape installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior body panels / Protector tape installation

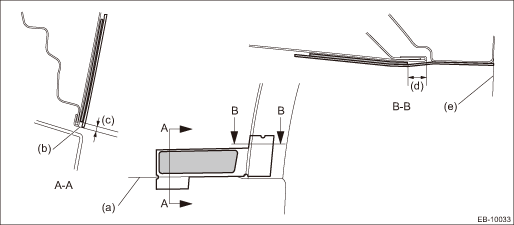

(a)

Panel ASSY - rear door end

(c)

4 mm+0 mm −4 mm (0.16 in+0 in −0.16 in)

(e)

Push the application tape end against the panel assembly - rear door end.

(b)

Push the application tape end against the panel assembly - rear door end.

(d)

14.4±4 mm (0.57±0.16 in)

1. Clean the area around applying position to remove any foreign objects on body.

2. Detach the backing papers from the protector tape and moisten the attaching area and protector tape backside by spraying liquid (mild detergent solution at 3% concentration).

3. Apply the protector tape to the vehicle body.

CAUTION:

Remove the water or air bubbles out of the protector tape by using the plastic or rubber spatula.

4. Detach the application tape and temporary retention tape.
