Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Entertainment / Power amplifier / Removal

NOTE:

Remove the power amplifier assembly after sliding the passenger’s seat back and forth as necessary.

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the power amplifier - assembly.

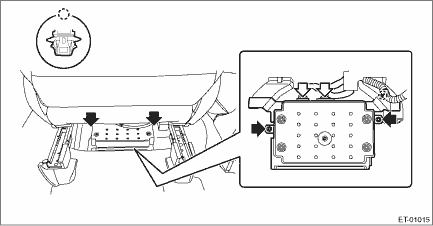

(1) Remove the harness clip, and disconnect each connector.

(2) Remove the nut and remove the power amplifier - assembly.

Installation

1. Install the power amplifier - assembly.Tightening torque:7.5 N·m (0.8 kgf-m, 5.5 ft-lb)2. Connect the ground terminal to battery sensor. NOTE ...
