Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

Subaru Legacy BN/BS (2015-2019) Service Manual / Sunroof t-top convertible top (sunroof) / Glass lid / Adjustment

1. Adjust the height of the lid assembly - sunroof and the roof panel.

2. Loosen the lid assembly - sunroof mounting bolts, and then adjust the height by moving the lid assembly - sunroof side.

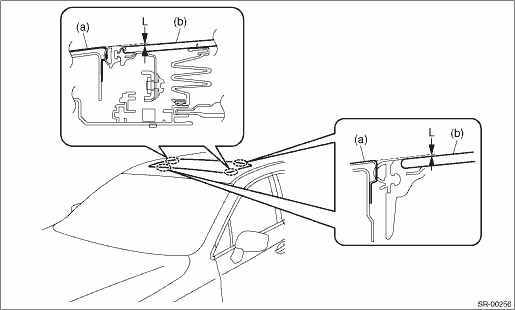

Lid assembly - sunroof height difference L:

Lid assembly - sunroof to Roof panel: 0±1.0 mm (0±0.04 in)

(a)

Roof panel

(b)

Lid ASSY - sunroof

Tightening torque:

4.5 N·m (0.5 kgf-m, 3.3 ft-lb)

Forced drive

CAUTION:After a forced operation, make sure to perform an initialize operation. Sunroof Control System > OPERATIONIf the lid assembly - sunroof does not operate or the motor assembly is not supplied ...

Removal

1. GLASS LIDCAUTION:Be careful not to damage the lid assembly - sunroof.1. Completely close the lid assembly - sunroof, and open the sunshade assembly.2. Disconnect the claws and then remove the lid c ...
