Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

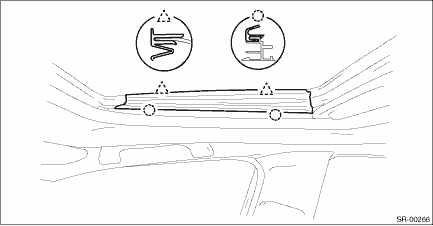

1. GLASS LID CAUTION: Be careful not to damage the lid assembly - sunroof. 1. Completely close the lid assembly - sunroof, and open the sunshade assembly. 2. Disconnect the claws and then remove the lid cover.

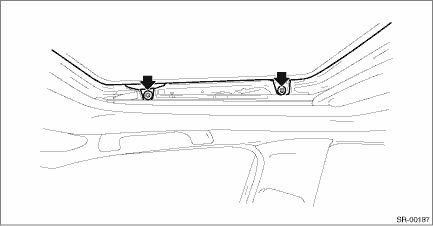

3. Remove the lid assembly - sunroof. Preparation tool: TORX® T25

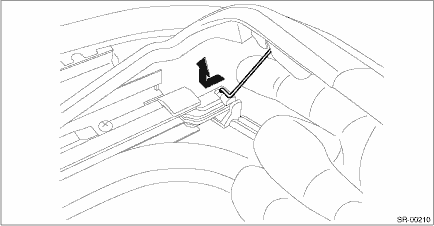

2. DEFLECTOR ASSEMBLY 1. Open the lid assembly - sunroof and the sunshade assembly. 2. Remove the deflector assembly - sunroof. (1) Remove the spring from the rail assembly - sunroof.

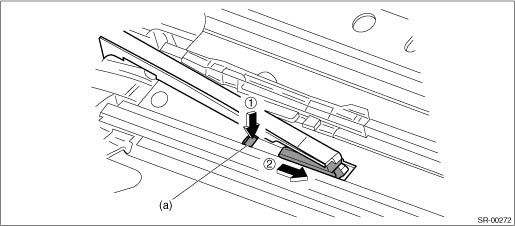

(2) While pressing down the hook (a) of rail assembly - sunroof, slide it to the rail rear direction to remove.

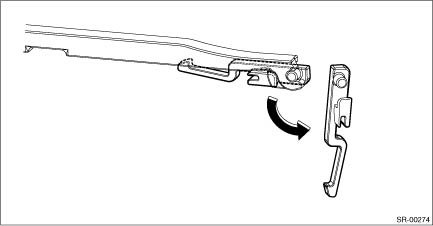

(3) Remove the deflector assembly - sunroof from the hook of rail assembly - sunroof.
|
Adjustment
1. Adjust the height of the lid assembly - sunroof and the roof panel.2. Loosen the lid assembly - sunroof mounting bolts, and then adjust the height by moving the lid assembly - sunroof side.Lid asse ...
Installation
1. GLASS LID1. Install the lid assembly - sunroof.Tightening torque:4.5 N·m (0.5 kgf-m, 3.3 ft-lb)2. Perform the open/close operation checks for the glass lid.3. Check the height of the lid ass ...
