1. Install the oil drain plug.

Tightening torque:

70 N·m (7.1 kgf-m, 51.6 ft-lb)

2. Install the overflow drain plug.

NOTE:

Overflow plug of differential gear oil is temporarily attached.

3. Install all plugs.

NOTE:

Use new O-rings.

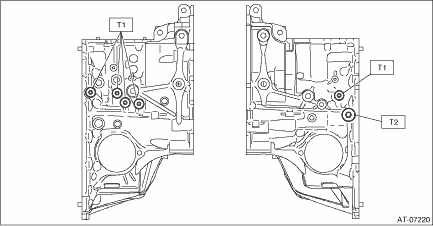

Tightening torque:

T1: 22 N·m (2.2 kgf-m, 16.2 ft-lb)

T2: 22.5 N·m (2.3 kgf-m, 16.6 ft-lb)

4. Install the transmission hanger and transmission radio ground cord.

Tightening torque:

41 N·m (4.2 kgf-m, 30.2 ft-lb)

Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL2. Remove the air breather hose. Air Breather Hose > REMOVAL3. Remove the control valve body. Control Valve Body > REMO ...

Installation

1. Install the oil pump. Oil Pump > INSTALLATION2. Install the oil pump chain cover. Oil Pump Chain > INSTALLATION3. Install the front differential assembly. Front Differential Assembly > INSTALLAT ...
