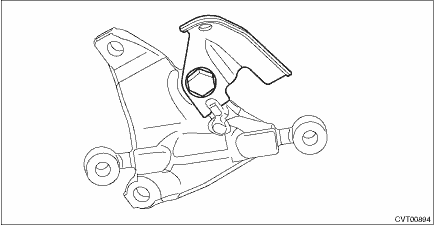

1. Install the harness stay.

Tightening torque:

23 N·m (2.3 kgf-m, 17.0 ft-lb)

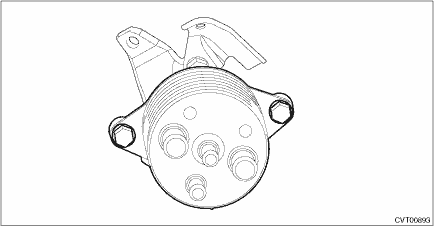

2. Install the CVTF cooler (with warmer feature).

Tightening torque:

23 N·m (2.3 kgf-m, 17.0 ft-lb)

Removal

CAUTION:If the CVTF and engine coolant is spilt over exhaust pipe, wipe it off with cloth to avoid emitting smoke or causing a fire.1. Disconnect the ground terminal from battery sensor. NOTE2. Drain ...

Installation

1. Install the CVTF cooler (with warmer feature).Tightening torque:23 N·m (2.3 kgf-m, 17.0 ft-lb)2. Install the engine coolant inlet hose.NOTE:With the paint on the engine coolant inlet hose fa ...
