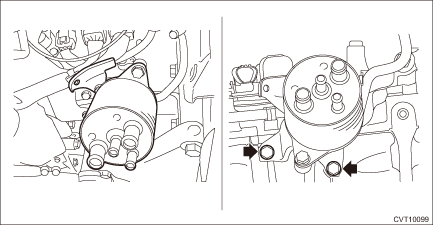

1. Install the CVTF cooler (with warmer feature).

Tightening torque:

23 N·m (2.3 kgf-m, 17.0 ft-lb)

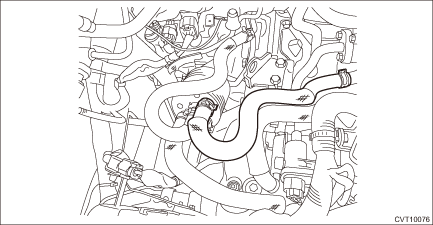

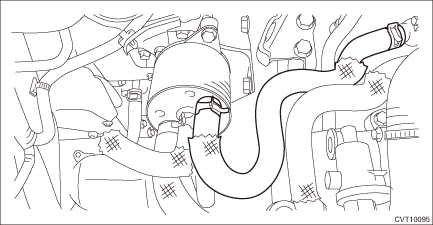

2. Install the engine coolant inlet hose.

NOTE:

With the paint on the engine coolant inlet hose facing the vehicle outside, install the hose to the engine side pipe.

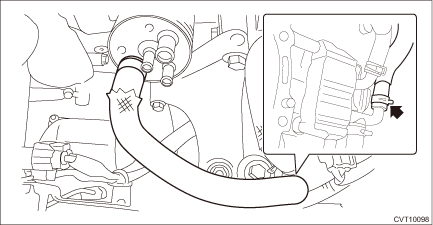

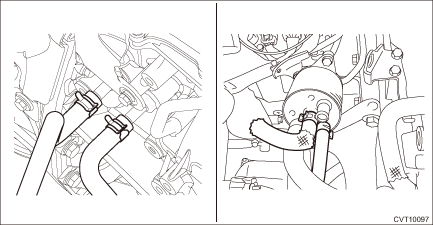

3. Install the CVTF inlet hose and CVTF outlet hose.

NOTE:

Use the new CVTF inlet hose and CVTF outlet hose.

• Without CVTF cooler (air cool)

• With CVTF cooler (air cool)

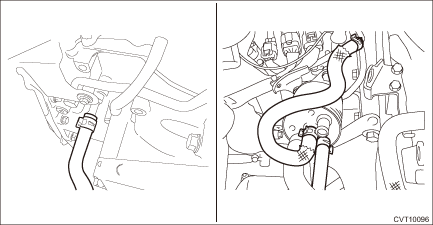

4. Connect the engine coolant outlet hose.

• Without CVTF cooler (air cool)

• With CVTF cooler (air cool)

5. Check installation condition of each hose.

• Make sure the hoses do not interfere with each other or with other components.

• Check each hose for bent, excess curve, and twisting conditions.

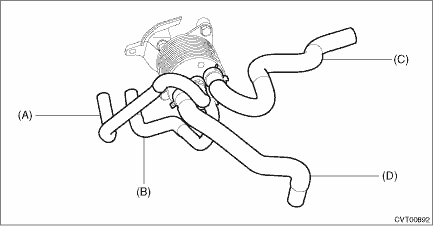

• Without CVTF cooler (air cool)

(A)	CVTF cooler inlet hose
(B)	CVTF cooler outlet hose
(C)	Engine coolant outlet hose
(D)	Engine coolant inlet hose

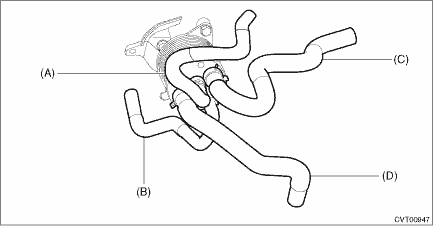

• With CVTF cooler (air cool)

(A)	CVTF cooler inlet hose
(B)	CVTF cooler outlet hose
(C)	Engine coolant outlet hose
(D)	Engine coolant inlet hose

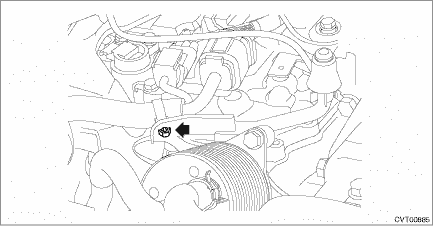

6. Install the harness clip.

7. Install the air intake boot assembly. Air Intake Boot > INSTALLATION

8. Connect the ground terminal to battery sensor. NOTE

9. Fill engine coolant. Engine Coolant > REPLACEMENT

10. Adjust the CVTF level. CVTF > ADJUSTMENT
