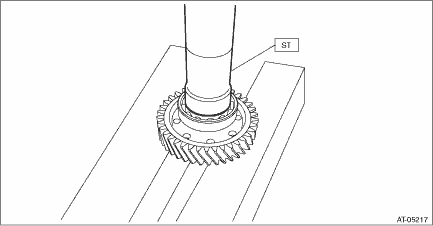

1. Install the new ball bearing (large) to reduction driven gear using the ST.

ST 499277100BUSHING 1-2 INSTALLER

NOTE:

• Use a new ball bearing.

• Install to the splines inside transfer reduction driven gear shaft.

2. Install the new ball bearing (small) to reduction driven gear.

NOTE:

Use a new ball bearing.

ST 499277100BUSHING 1-2 INSTALLER

Disassembly
1. Using the ST, remove the ball bearing (large) from transfer reduction driven gear.ST1 899864100REMOVERST2 398497701SEATST3 498077600REMOVER2. Using the ST, remove the ball bearing (small) ...
