Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transfer reduction driven gear / Disassembly

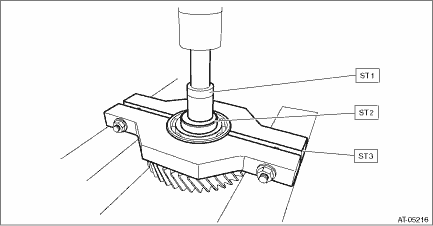

1. Using the ST, remove the ball bearing (large) from transfer reduction driven gear.

ST1 899864100

REMOVER

ST2 398497701

SEAT

ST3 498077600

REMOVER

2. Using the ST, remove the ball bearing (small) from transfer reduction driven gear.

ST1 899864100

REMOVER

ST2 398497701

SEAT

ST3 18720AA000

REMOVER
