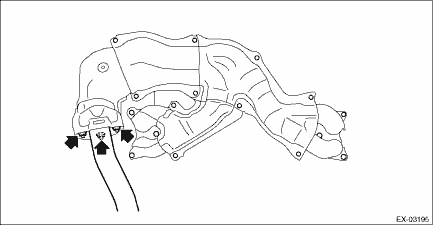

1. Install each cover to the front exhaust pipe.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

2. Install the center exhaust pipe to front exhaust pipe.

NOTE:

Use a new gasket.

Tightening torque:

42.5 N·m (4.3 kgf-m, 31.3 ft-lb)

3. Install the front oxygen (A/F) sensor and rear oxygen sensor to the front exhaust pipe. Front Oxygen (A/F) Sensor > INSTALLATION Rear Oxygen Sensor > INSTALLATION
