Subaru Legacy BN/BS (2015-2019) Service Manual: Component

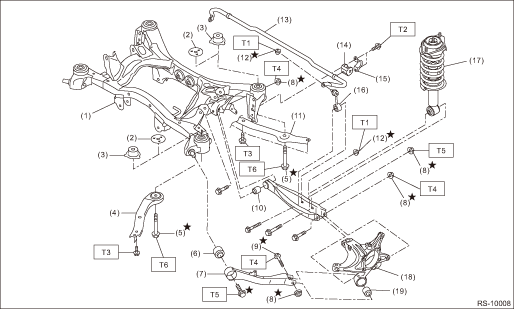

1. REAR SUSPENSION

(1)

Rear sub frame ASSY

(11)

Support - sub frame

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear sub frame stopper upper (sedan model)

(12)

Flange nut

T1:

33 (3.4, 24.3)

(3)

Rear sub frame stopper upper (OUTBACK model)

(13)

Rear stabilizer

T2:

38 (3.9 28.0)

(4)

Front sub frame support plate

(14)

Bushing - stabilizer

T3:

70 (7.1, 51.6)

(5)

Flange bolt A

(15)

Clamp - stabilizer bushing

T4:

80 (8.2, 59.0)

(6)

Bushing A - trailing link

(16)

Stabilizer link ASSY

T5:

120 (12.2, 88.5)

(7)

Trailing link

(17)

Rear shock absorber ASSY

T6:

145 (14.8, 106.9)

(8)

Self-locking nut

(18)

Housing ASSY - rear axle

(9)

Flange bolt B

(19)

Bushing - trailing link

(10)

Bushing C - lateral link rear

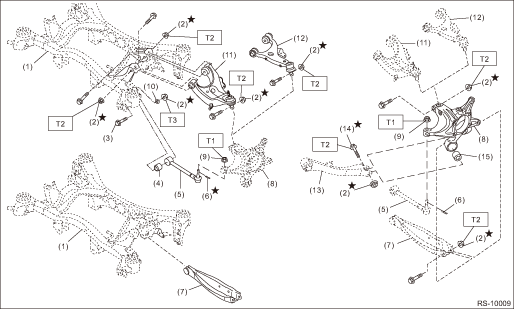

(1)

Rear sub frame ASSY

(8)

Housing ASSY - rear axle

(15)

Bushing - rear trailing link

(2)

Self-locking nut

(9)

Flange nut

(3)

Adjusting bolt

(10)

Adjusting washer

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Bushing B - lateral link

(11)

Rear upper arm ASSY (sedan model)

T1:

60 (6.1, 44.3)

(5)

Lateral link ASSY - front

(12)

Rear upper arm ASSY (OUTBACK model)

T2:

80 (8.2, 59.0)

(6)

Snap pin

(13)

Trailing link

T3:

120 (12.2, 88.5)

(7)

Lateral link ASSY - rear

(14)

Flange bolt

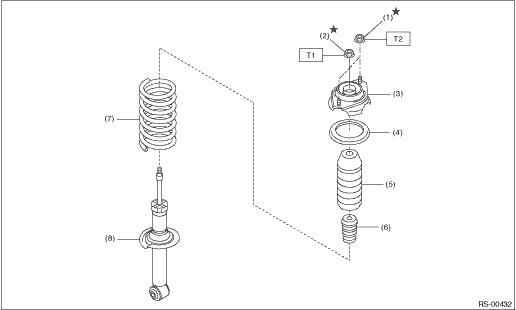

2. REAR SHOCK ABSORBER

(1)

Flange nut

(5)

Dust cover - rear shock

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Self-locking nut

(6)

Helper - rear

T1:

25 (2.5, 18.4)

(3)

Shock mount - rear

(7)

Coil spring - rear

T2:

30 (3.1, 22.1)

(4)

Rubber seat - shock UPR

(8)

Shock absorber COMPL - rear

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS20099AE000INSTALLER & REMOVERUsed for replacing the bushing B - lateral link.499755602PRESSUsed for replacing the bushing - rear trailing link.2 ...

Rear lateral link
...
