Subaru Legacy BN/BS (2015-2019) Service Manual: Component

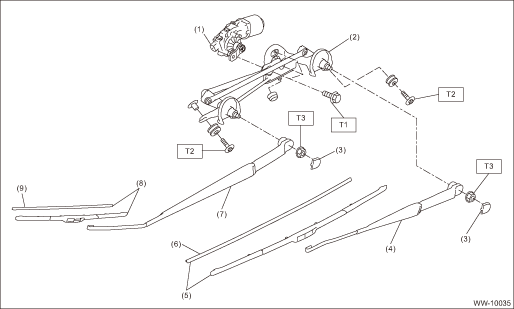

1. FRONT WIPER

(1)

Motor ASSY - windshield wiper

(6)

Rubber ASSY - windshield wiper driver

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Link ASSY - windshield wiper

(7)

Arm ASSY - windshield wiper assistor

T1:

5.4 (0.6, 4)

(3)

Cover - windshield wiper arm

(8)

Blade ASSY - windshield wiper assistor

T2:

6 (0.6, 4.4)

(4)

Arm ASSY - windshield wiper driver

(9)

Rubber ASSY - windshield wiper assistor

T3:

22 (2.2, 16.2)

(5)

Blade ASSY - windshield wiper driver

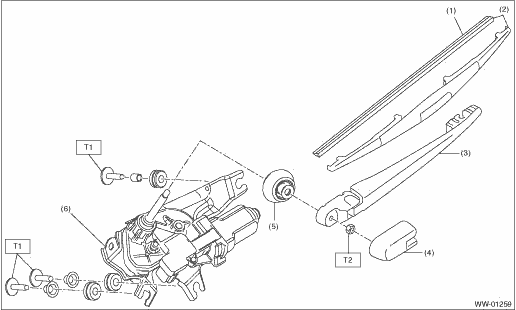

2. REAR WIPER

(1)

Rubber ASSY - rear wiper

(4)

Cover - rear wiper arm

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Blade ASSY - rear wiper

(5)

Cap - pivot wiper

T1:

7 (0.7, 5.2)

(3)

Arm ASSY - rear wiper

(6)

Motor ASSY - rear wiper

T2:

8 (0.8, 5.9)

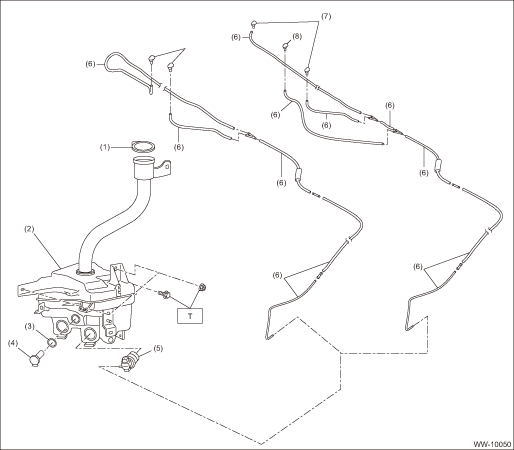

3. WASHER TANK (FRONT)

(1)

Cap - washer tank

(6)

Packing - motor pump

(11)

Nozzle - windshield washer EyeSight (model with EyeSight)

(2)

Clip

(7)

Motor pump ASSY - washer front

(3)

Tank - washer

(8)

Holder - hose

Tightening torque: N·m (kgf-m, ft-lb)

(4)

Packing - sensor

(9)

Hose - windshield washer

T:

6 (0.6, 4.4)

(5)

Sensor - washer tank

(10)

Nozzle - windshield washer

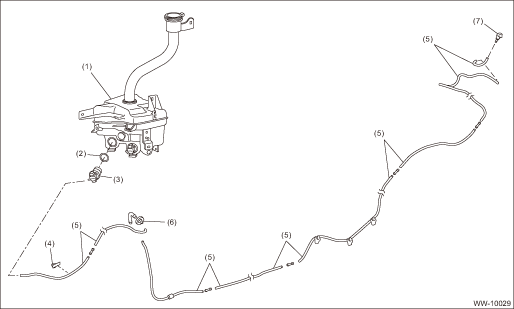

4. WASHER TANK (REAR)

(1)

Tank - washer

(4)

Holder - hose

(7)

Nozzle - rear washer

(2)

Packing - motor pump

(5)

Hose ASSY - rear washer

(3)

Motor pump ASSY - washer rear

(6)

Grommet - washer hose

Preparation tool
