Subaru Legacy BN/BS (2015-2019) Service Manual: Preparation tool

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / General description / Preparation tool

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

—

(Newly adopted tool)

SUBARU SELECT MONITOR 4

Used for setting of each function and troubleshooting for electrical system.

NOTE:

For detailed operation procedures of Subaru Select Monitor 4, refer to “Application help”.

2. GENERAL TOOL

TOOL NAME	REMARKS
DST-i	Used together with Subaru Select Monitor 4.
Circuit tester	Used for measuring resistance, voltage and current.

NOTE:

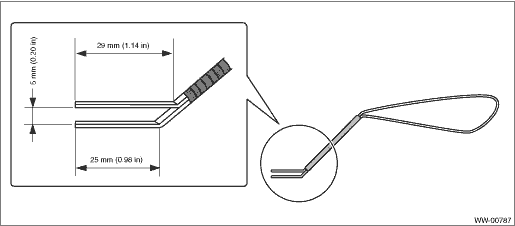

Referring to the data described below, prepare the materials to make a nozzle - windshield washer adjustment tool.

Materials

• Vertebra of wiper blade which is to be discarded

• Vinyl tape

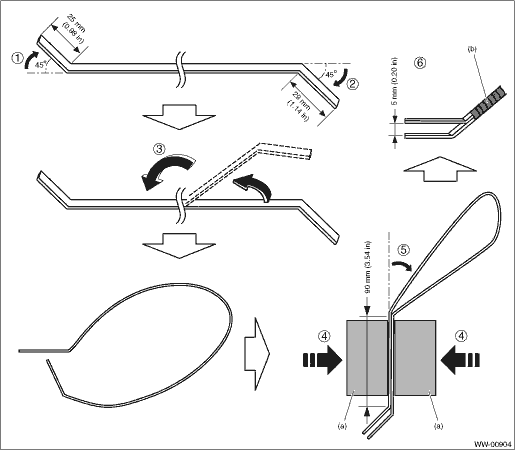

Steps of making a front washer nozzle adjustment tool

(1) Bend the vertebra at the position 25 mm (0.98 in) away from its end by 45°.

(2) Bend the vertebra at the position 29 mm (1.14 in) away from the other end by 45°.

(3) Double up the vertebra so that the longer end (29 mm (1.14 in)) comes upward.

(4) Secure the vertebra with a vise (a) so that the tip clearance becomes 5 mm (0.20 in).

(5) Bend the vertebra at the position approximately 90 mm (3.54 in) away from the bending point for the longer end.

(6) Check that the tip clearance is 5 mm (0.20 in), and secure the vertebra with vinyl tape (b).

Caution

• Be careful of the following items. Failing to do so may cause the airbag system malfunction.– Yellow connectors and harnesses with yellow tapes around them are the connectors and harnesses ...

Component

1. FRONT WIPER(1)Motor ASSY - windshield wiper(6)Rubber ASSY - windshield wiper driverTightening torque: N·m (kgf-m, ft-lb)(2)Link ASSY - windshield wiper(7)Arm ASSY - windshield wiper assistor ...
