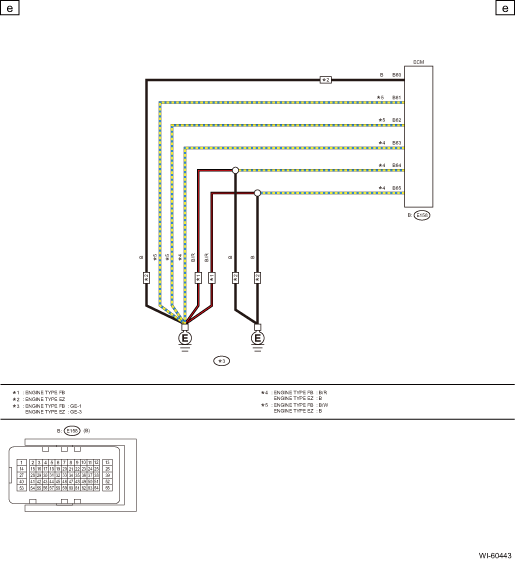

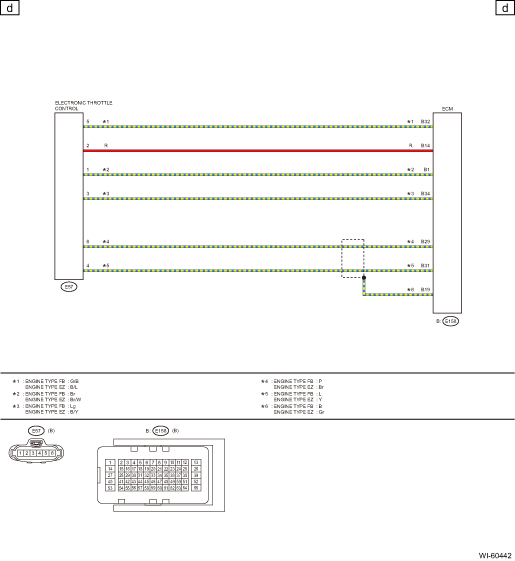

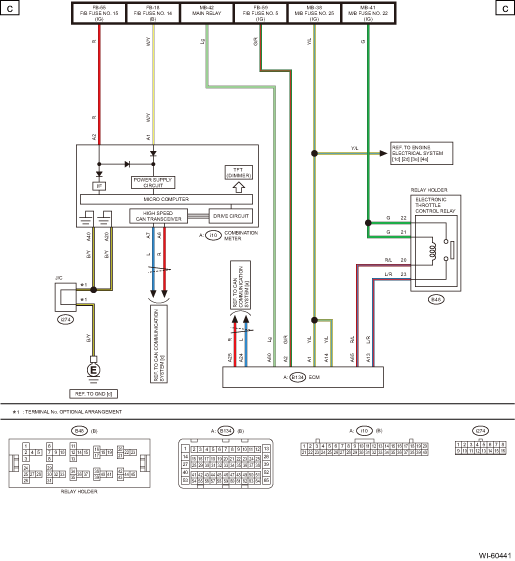

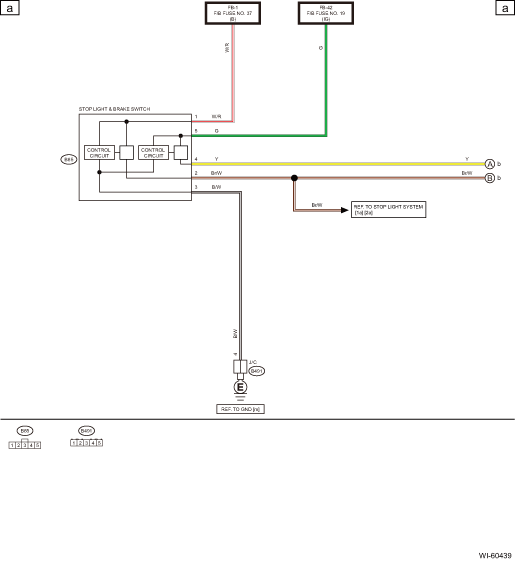

Subaru Legacy BN/BS (2015-2019) Service Manual: Cruise control system wiring diagram

Coolant temperature system wiring diagram

...

Cvt control system wiring diagram

1. ENGINE TYPE FB2. ENGINE TYPE EZ ...
