Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Oil pump chain / Disassembly

1. DRIVE SPROCKET

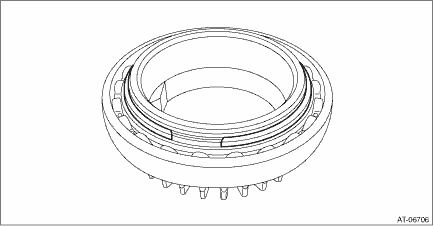

1. Remove the snap ring.

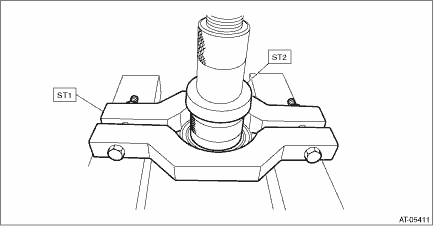

2. Remove the ball bearing using ST.

ST1 498077600REMOVER
ST2 399513600INSTALLER

Inspection
• Check the oil pump chain for damage.• Replace if gear teeth are broken, damaged, sharpen or excessively worn.• Check the bearing for seizure or wear.• Apply CVTF to bearing a ...

Parking pawl
...
