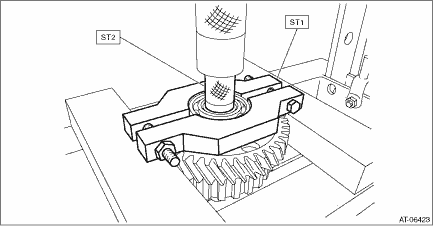

1. Remove the ball bearing using ST.

ST1 498077400

BEARING REMOVER

ST2 899864100

REMOVER

Inspection

• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Check the transfer driven gear for breakage or damage. ...

Assembly

1. Using the ST, install the ball bearing.ST 899580100INSTALLER ...
