Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Front reduction driven gear / Disassembly

1. Remove the front reduction driven shaft from the front reduction driven gear.

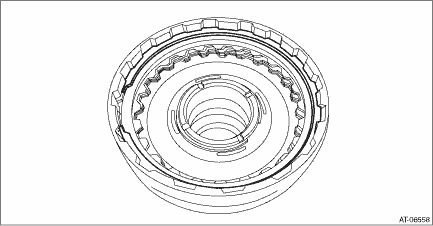

2. Remove the snap ring.

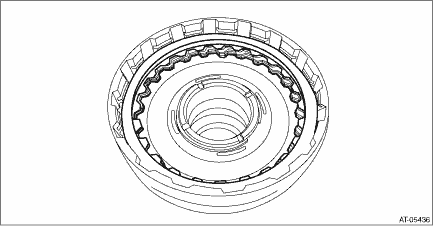

3. Remove the retaining plate, drive plate, driven plate and dish plate.

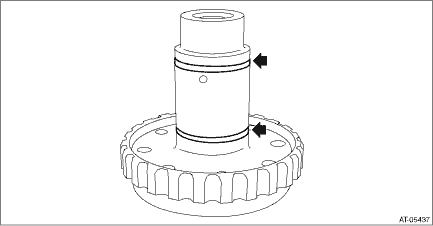

4. Remove the seal ring from front reduction driven shaft.

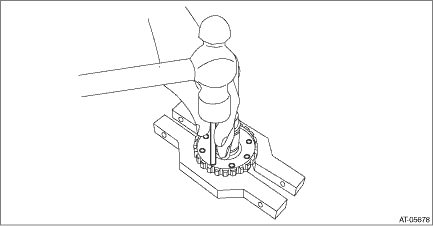

5. Remove the ball bearing, while tapping the entire circumference around the ball bearing outer race a little at a time through the front reduction driven shaft hole using the round bar with diameter of 7 mm (0.28 in).

Inspection

• Check the drive plate for wear and damage.• Check the driven plate for discoloration (burnt color).• Check for worn snap ring, fatigue or damaged return spring or deformed piston r ...

Assembly

1. Place the dish plate, driven plate, drive plate and retaining plate neatly in this order on surface table.NOTE:Make sure of the direction of dish plate.2. Set the dial gauge to retaining plate, and ...
