Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Rear drive shaft / Disassembly

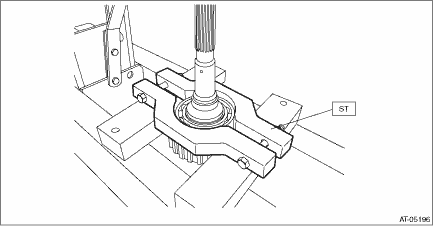

1. Remove the ball bearing using ST.

ST 498077600

REMOVER

Inspection

• Check each part for crack, damage or dust.• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness. ...

Assembly

1. Using the ST, install the ball bearing.NOTE:• Use a new ball bearing.• Apply CVTF to press-fitting surface of ball bearing.ST 399513600INSTALLER ...
