Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Mechanical(h4do) / Chain cover / Disassembly

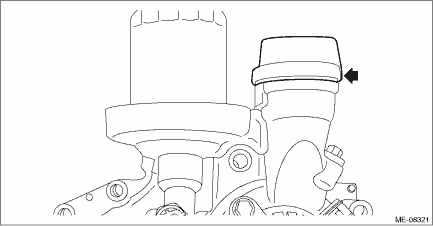

1. Remove the oil filler cap.

2. Remove the engine oil filter and the oil pump union. Engine Oil Filter > REMOVAL

3. Remove the oil pressure switch. Oil Pressure Switch > REMOVAL

4. Remove the engine oil temperature sensor. Engine Oil Temperature Sensor > REMOVAL

5. Remove the oil control solenoid. Oil Control Solenoid > REMOVAL

6. Remove the camshaft position sensor. Camshaft Position Sensor > REMOVAL
