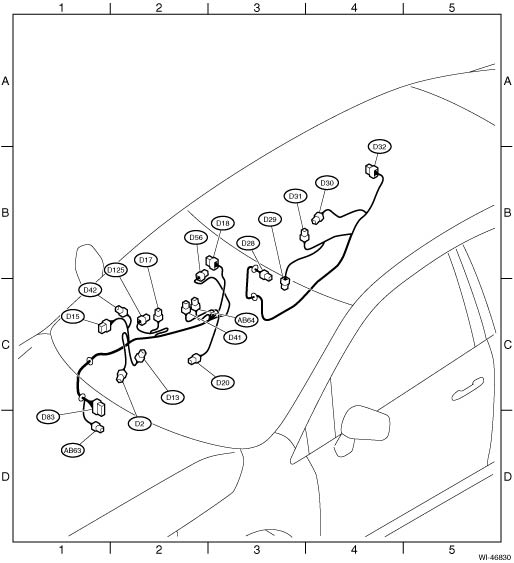

Subaru Legacy BN/BS (2015-2019) Service Manual: Door cord rh location

Connector

Connecting to

No.

Pole

Color

Area

No.

Description

AB63

2

D-1

R124

Rear wiring harness RH

AB64

2

B

C-2

Front door impact sensor RH

D2

2

C-2

Front door speaker RH

D13

6

Gr

C-2

Front power window motor RH

D15

13

C-1

Outer mirror assy RH

D17

8

C-2

Front power window sub-switch

D18

10

B-3

Front door lock actuator RH

D20

2

Gr

C-2

Door step light RH

D28

8

B-3

R13

Rear wiring harness RH

D29

2

C-3

Rear door speaker RH

D30

6

L

B-4

Rear power window motor RH

D31

8

B-3

Rear power window switch RH

D32

10

B-4

Rear door lock actuator RH

D41

2

C-2

Door pocket light RH

D42

4

C-2

J/C

D56

6

Gr

B-2

Outer handle RH

D83

46

C-1

i76

Instrument panel wiring harness

D125

5

C-2

Passenger's door lock switch

:White or natural color
