Subaru Legacy BN/BS (2015-2019) Service Manual: Dtc b177e buckle switch range

Subaru Legacy BN/BS (2015-2019) Service Manual / Occupant detection system (diagnostics) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc b177e buckle switch range

DTC DETECTING CONDITION:

• Passenger’s buckle switch circuit is open, shorted or shorted to ground.

• Seat harness circuit is open, shorted or shorted to ground.

• Occupant detection control module is faulty.

CAUTION:

Before performing diagnosis, refer to “CAUTION” in “General Description”. General Description > CAUTION

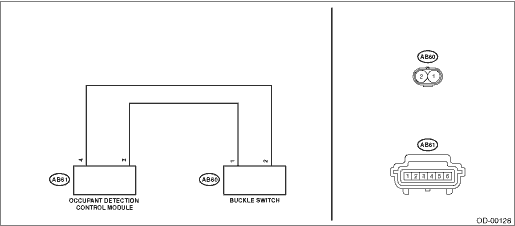

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Occupant detection system Occupant Detection System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK DTC. Read the DTC of the occupant detection system. Read Diagnostic Trouble Code (DTC)	Is DTC other than DTC B177E, B1779, B177A or B177B displayed for the occupant detection system-	Perform the diagnosis according to DTC.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B177E BUCKLE SWITCH RANGE
2.CHECK POOR CONTACT OF CONNECTORS. Check for poor contact of the connectors between the occupant detection control module and buckle switch.	Is there poor contact-	When the connector is not fully connected, reconnect the connector correctly. Replace the occupant detection harness (seat harness) if the connector is faulty.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B177E BUCKLE SWITCH RANGE
3.CHECK BUCKLE SWITCH. 1) Turn the ignition switch to OFF, disconnect the battery ground terminal, and wait for 60 seconds. 2) Disconnect the buckle switch connector (AB60). 3) Connect the test harness AE and test harness connector Y to buckle switch connector (AB60). 4) Connect the battery ground terminal and turn the ignition switch to ON.	Does the airbag warning light illuminate for 6 seconds and go off-	Replace the buckle switch. Front Seat Belt > REMOVAL	Check the occupant detection harness, and if any fault is found, replace the occupant detection harness. If the fault is not fixed, replace the occupant detection system. Front Seat > DISASSEMBLY
