Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Tire pressure monitoring system (diagnostics) / Electrical component location location

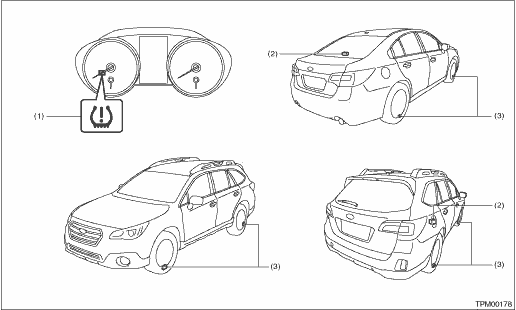

(1)

Tire pressure warning light

(2)

TPMS & keyless entry CM*1 or TPMS CM*2

(3)

Snap-in type transmitter

*1: Without push button start

*2: With push button start

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System».4. ...

General diagnostic table inspection

SymptomsFaulty partsTire pressure warning light illuminates.Tire pressure is reduced.• Improper tire pressure adjustment• Punctured tireTire pressure warning light blinks 25 times and then ...
