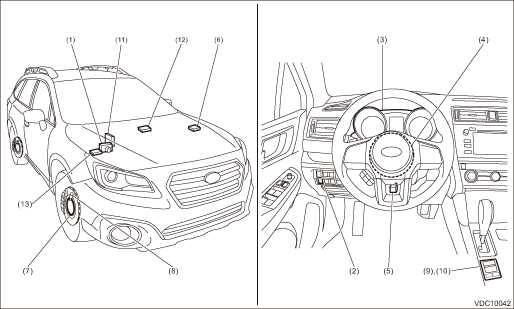

(1)	VDC control module and hydraulic control unit (VDCCM&H/U)	(6)	Brake light relay	(10)	Hill hold switch
(2)	VDC OFF switch	(7)	Magnetic encoder	(11)	Engine control module (ECM)
(3)	Combination meter	(8)	ABS wheel speed sensor	(12)	Transmission control module (TCM) (engine type FB)
(4)	Steering angle sensor	(9)	Parking brake switch	(13)	Transmission control module (TCM) (engine type EZ)
(5)	Stop light and brake switch

(3) Combination meter

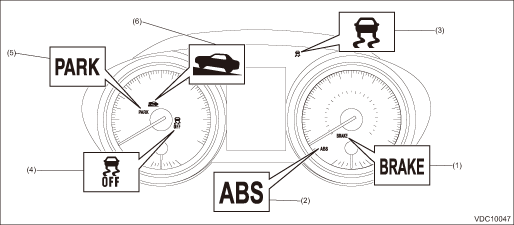

(1)	Brake warning light (EBD warning light) and electronic parking brake warning light	(3)	VDC warning light & VDC indicator light	(5)	Electronic parking brake operation indicator light
(2)	ABS warning light	(4)	VDC OFF indicator light	(6)	Hill hold indicator light

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System Check».4. O ...

General diagnostic table inspection

SymptomsMain probable causeOther probable causePoor brake performanceLong braking/stopping distance• VDCCM&H/U• Brake pad• Aeration to brake line• Tire specifications, tire wea ...
