Subaru Legacy BN/BS (2015-2019) Owners Manual: How to use as crossbars

Subaru Legacy BN/BS (2015-2019) Owners Manual / Driving tips / Loading your vehicle / Roof rails with integrated crossbars (Outback - if equipped) / How to use as crossbars

CAUTION
  •  Do not raise the bar higher than necessary. The base of the bar may be damaged.
  •  Be careful not to contact the bars while sliding them. Otherwise, the bars may be scratched or the latch portions may be damaged.
  •  Do not slide the bar more than necessary when sliding the bar.

    The base of the bar may be damaged.

  •  Do not allow the bar to fall on or contact the roof panel or the moonroof when sliding the bar.

    Otherwise the roof panel may be dented or the glass of the moonroof may be damaged.

How to use as crossbars

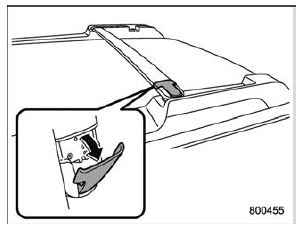

  1. Pull out the integrated crossbars from the roof rail holders by pulling up the covers.

How to use as crossbars

  1. Slide the bars in the direction shown in the illustration.

How to use as crossbars

  1. Install the bars into the holders.
  2.  Make sure that the latches are fitted securely.

How to change the position of the crossbar

WARNING Carefully read the warning label attached to the roof rail.

You can change the position of the rear crossbar. To change the position, perform the following procedure.

  1.  Take out the torque wrench from the under-floor storage compartment.

How to change the position of the crossbar

  1. Remove the cap of the roof rail holder by using the torque wrench.

How to change the position of the crossbar

  1. Remove the bolt of the crossbar by using the torque wrench.

How to change the position of the crossbar

  1. Pull out the crossbar from the roof rail holder by pulling up the cover.
  2. Install the crossbar into the other holder.

How to change the position of the crossbar

  1. Tighten the bolt of the crossbar by using the torque wrench. The tightening torque is approximately 8.9+2.2 lbf·ft (12 + 3.0 N·m, 1.2 + 0.3 kgf·m).

How to change the position of the crossbar

  1. Install the plastic plug by pushing it into the hole until it is fully seated.
Installing carrying attachments on the crossbars
When installing any carrying attachment such as a bike carrier, ski carrier, kayak carrier, cargo basket, etc. on the crossbars, follow the manufacturer's instructions and make sure that the attac ...

How to re-stow bars
CAUTION Do not use the bars as roof rails when the bars are stowed. CAUTION Do not use the bars as roof rails when the bars are stowed. Pull out the crossbars from ...
