• Check each component for scratches, damage or other faults.

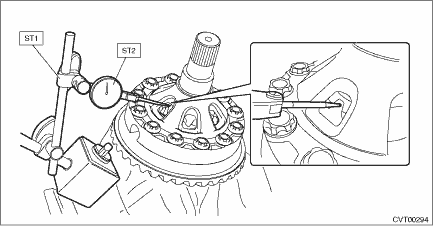

• Using the ST, check the backlash of pinion gear.

ST1 498247001

MAGNET BASE

ST2 498247100

DIAL GAUGE

Specification:

0.13 — 0.18 mm (0.0051 — 0.0071 in)

• Measure the hypoid gear backlash, and then adjust it to be within specification. Front Differential Assembly > ADJUSTMENT

Installation

1. Install the front differential assembly to the converter case.NOTE:Be careful not to damage the inside of the case (especially the mounting surface of the differential side retainers).2. Install th ...

Disassembly

1. DIFFERENTIAL CASE ASSEMBLY1. Remove the taper roller bearing using the ST.ST1 498077000REMOVERST2 899864100REMOVERST3 398497701SEAT2. Remove the hypoid driven gear mounting bolt using the ...
