Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Fuel level sensor / Inspection

1. Check that the fuel level sensor has no damage.

2. Measure the fuel level sensor float position.

NOTE:

When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

(1)

FULL

(2)

EMPTY

(3)

Fuel tank seating surface

Float position	Standard
FULL to Fuel tank seating surface (A)	133.0±4 mm (5.236±0.157 in)
EMPTY to Fuel tank seating surface (B)	21.6±4 mm (0.850±0.157 in)

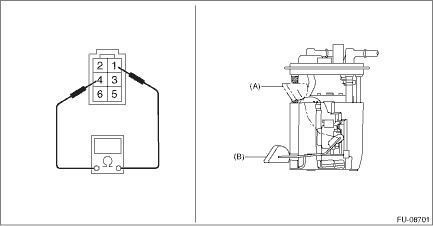

3. Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.

Float position	Terminal No.	Standard
FULL (A)	1 and 4	8.7±1.0 -
EMPTY (B)	1 and 4	139.1±2.0 -
