1. Check that the rear oxygen sensor has no deformation, cracks or other damages.

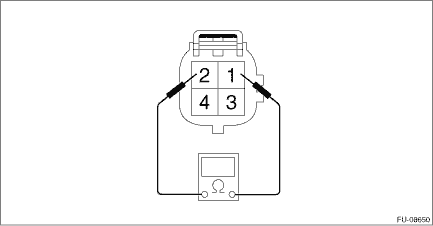

2. Measure the resistance between rear oxygen sensor terminals.

Terminal No.	Standard
1 and 2	5.6+0.8 −0.6 - (when 20°C (68°F))
