Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Security and locks / Ignition key lock / Inspection

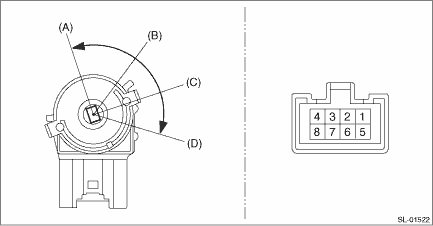

1. Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

Terminal No.

Inspection conditions

Standard

Between all terminals

(A)

LOCK

1 M- or more

2 — 4

(B)

ACC

Less than 1 -

1 — 2 — 4

5 — 6

(C)

ON

Less than 1 -

1 — 3 — 4

5 — 6 — 7

(D)

ST

Less than 1 -

2. Replace the ignition switch assembly if the inspection result is not within the standard.

Disassembly
NOTE:Refer to “Key Lock Cylinders” for disassembly of the ignition key lock. Key Lock Cylinders > REMOVAL ...
