Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Brake / Rear disc rotor / Installation

NOTE:

Before installation, remove mud and foreign matter from the disc brake assembly.

1. Check the rear disc rotor. Rear Disc Rotor > INSPECTION

2. Install the rear disc rotor.

NOTE:

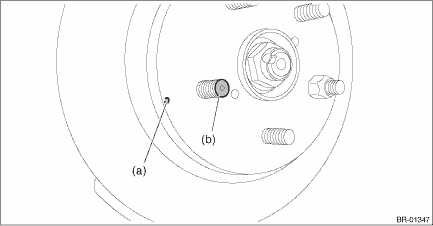

When installing the rear disc rotor, match the alignment mark (a) of the rear disc rotor and the alignment mark (b) of the bolt - hub.

3. Install the disc brake assembly.

Tightening torque:

Mounting bolt: 66 N·m (6.7 kgf-m, 48.7 ft-lb)

Brake hose bracket: 33 N·m (3.4 kgf-m, 24.3 ft-lb)

4. Connect the ground terminal to battery sensor. NOTE

5. Using the Subaru Select Monitor, exit the brake maintenance mode according to the display screen. Parking Brake System > OPERATION

NOTE:

For detailed operation procedures, refer to “Application help”.

6. After the operation is completed, apply and release the parking brake five times and ensure that the brake operates normally.

7. Install the rear wheels.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

Inspection

1. DISC ROTOR RUNOUT CHECK1. Check the hub unit COMPL - rear axle for free play and runout before the inspection of disc rotor runout limit. Rear Hub Unit Bearing > INSPECTION2. Check the disc rotor ...
