Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Emission control (aux. Emission control devices)(h4do) / Purge control solenoid valve / Inspection

1. PURGE CONTROL SOLENOID VALVE

1. Check that the purge control solenoid valve has no deformation, cracks or other damages.

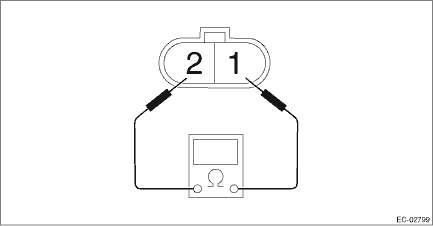

2. Measure the resistance between the purge control solenoid valve terminals.

Terminal No.	Standard
1 and 2	24.5±1.5 - (20°C (68°F))

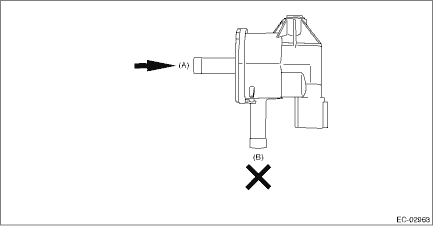

3. Check that air does not come out from (B) when air is blown into (A).

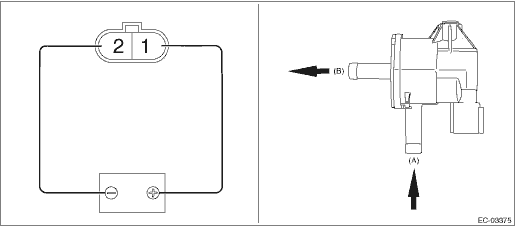

4. Connect the battery positive terminal to the terminal No. 1 and the battery negative terminal to the terminal No. 2. Check that air is discharged from (B), when supplying air to (A).

2. OTHER INSPECTIONS

Check the vacuum hose for cracks, damage or looseness.
