Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

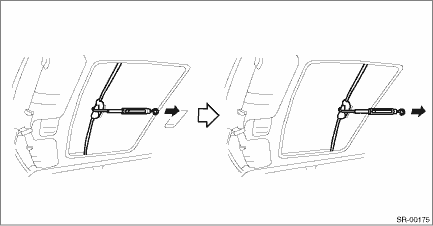

1. MOVING LOAD OF SUNSHADE ASSEMBLY 1. Attach a spring scale together with a cloth to the edge of sunshade assembly. 2. Pull the spring scale to check the moving load of the sunshade assembly. Moving load of sunshade assembly: 17±8.5 N (1.73 kgf, 3.8 lbf±0.87 kgf, 1.9 lbf)
NOTE: Moving load is larger at the beginning of pulling a spring scale, so take a spring scale reading while the sunshade assembly is sliding smoothly. 3. If the inspection result exceeds the standard, check that the sunshade assembly or the rail assembly - sunroof is installed properly. If necessary, replace the sunshade assembly or the rail assembly - sunroof. |
Removal
1. Remove the lid assembly - sunroof. Glass Lid > REMOVAL2. Operate the sunroof switch with the sunshade fully closed to open the sunshade to the position (a) indicated below.(a)170 mm (6.69 in): Cle ...
Installation
1. Attach protective tape on the handle and the edge surface of the sunshade assembly, and install the sunshade assembly.2. Install the drain holder.3. Install the rail assembly - sunroof. Sunroof As ...
