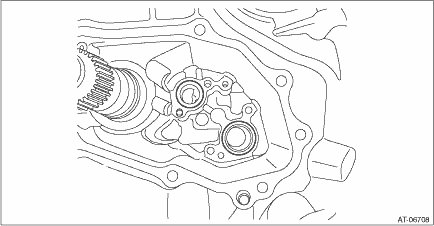

1. Install the O-rings.

NOTE:

• Use new O-rings.

• Apply CVTF to the O-rings.

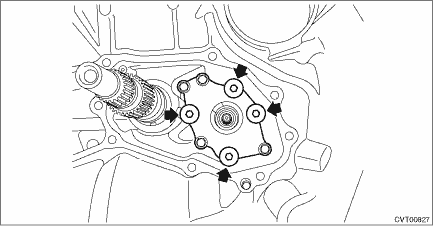

2. Install the plate and the oil pump.

NOTE:

Apply CVTF to the bolt.

Tightening torque:

8.5 N·m (0.9 kgf-m, 6.3 ft-lb)

3. Install the oil pump chain cover. Oil Pump Chain > INSTALLATION

4. Install the torque converter assembly. Torque Converter Assembly > INSTALLATION

5. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Inspection

Check the following items.• Check the oil pump for damage and wear.• Rotate the oil pump by hand, and check that it rotates smoothly.1. Measure the secondary pressure. Secondary Pressure ...
