1. ENGINE SIDE

1. Install a gasket to thermostat.

NOTE:

Use a new gasket.

2. Install the thermostat and thermostat cover.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

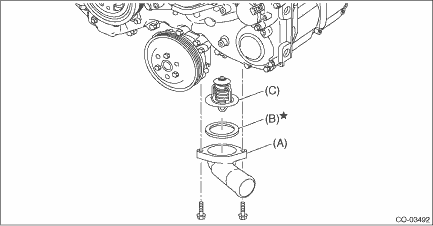

(A)

Thermostat cover

(B)

Gasket

(C)

Thermostat

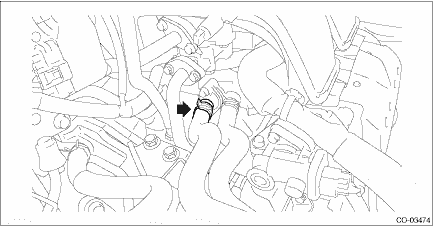

3. Connect the radiator outlet hose to thermostat cover.

4. Install the front exhaust pipe. Front Exhaust Pipe > INSTALLATION

5. Connect the ground terminal to battery sensor. NOTE

6. Fill engine coolant. Engine Coolant > REPLACEMENT

2. CVTF COOLER (WITH WARMER FEATURE) SIDE

1. Install a gasket to thermostat.

NOTE:

Use a new gasket.

2. Install the thermostat and thermostat cover.

NOTE:

Install the parts with the air vent hole facing upward.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

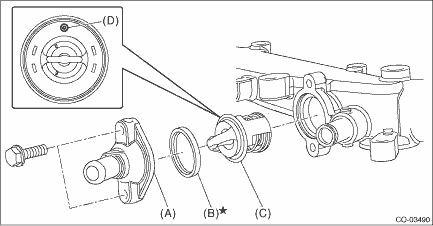

(A)	Thermostat cover	(B)	Gasket	(C)	Thermostat
(D)	Air vent hole

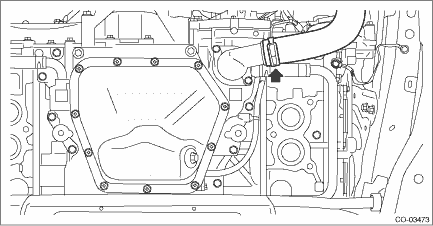

3. Connect the engine coolant hose to the thermostat cover.

4. Install the air intake boot. Air Intake Boot > INSTALLATION

5. Connect the ground terminal to battery sensor. NOTE

6. Fill engine coolant. Engine Coolant > REPLACEMENT

Inspection

1. Check that the thermostat does not have deformation, cracks or damage.2. Check that the thermostat valve closes completely at an ambient temperature.3. Immerse the thermostat and a thermometer in w ...
