Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

1. RADIATOR FAN CONTROL MODULE (MAIN)

1. Install the radiator fan control module (main), and install the bolts securing the radiator fan control module (main).

Tightening torque:

2.6 N·m (0.3 kgf-m, 1.9 ft-lb)

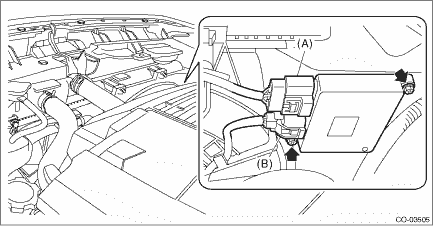

2. Connect the radiator fan harness connector (A) and radiator main fan motor connector (B) to the radiator fan control module (main).

3. Install the air intake duct. Air Intake Duct > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

5. Install the collector cover.

2. RADIATOR FAN CONTROL MODULE (SUB)

1. Install the radiator fan control module (sub), and install the bolts securing the radiator fan control module (sub).

Tightening torque:

2.6 N·m (0.3 kgf-m, 1.9 ft-lb)

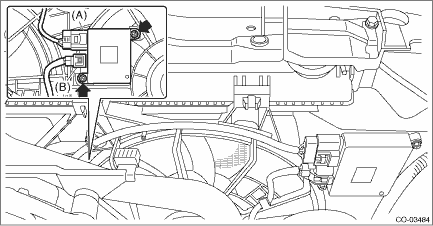

2. Connect the radiator fan harness connector (A) and radiator sub fan motor connector (B) to the radiator fan control module (sub).

3. Install the air intake duct. Air Intake Duct > INSTALLATION

4. Connect the ground terminal to battery sensor. NOTE

Removal
1. RADIATOR FAN CONTROL MODULE (MAIN)1. Remove the collector cover.(1) Carefully pull up the rear of collector cover at two positions (A).(2) Carefully pull up the front of collector cover at two posi ...
