1. RADIATOR FAN CONTROL MODULE (MAIN)

1. Remove the collector cover.

(1) Carefully pull up the rear of collector cover at two positions (A).

(2) Carefully pull up the front of collector cover at two positions (B) while moving it forward.

2. Disconnect the ground terminal from battery sensor. NOTE

3. Remove the air intake duct. Air Intake Duct > REMOVAL

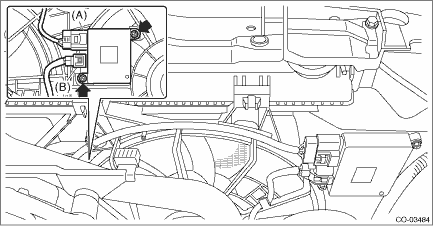

4. Disconnect the radiator fan harness connector (A) and radiator main fan motor connector (B) from the radiator fan control module (main).

5. Remove the bolts securing the radiator fan control module (main), and remove the radiator fan control module (main).

2. RADIATOR FAN CONTROL MODULE (SUB)

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the air intake duct. Air Intake Duct > REMOVAL

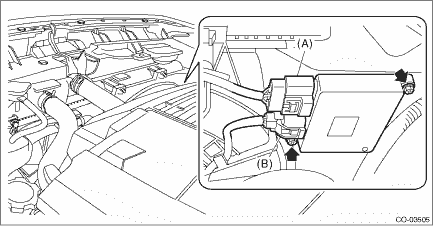

3. Disconnect the radiator fan harness connector (A) and radiator sub fan motor connector (B) from the radiator fan control module (sub).

4. Remove the bolts securing the radiator fan control module (sub), and remove the radiator fan control module (sub).

Installation

1. RADIATOR FAN CONTROL MODULE (MAIN)1. Install the radiator fan control module (main), and install the bolts securing the radiator fan control module (main).Tightening torque:2.6 N·m (0.3 kgf- ...
