Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

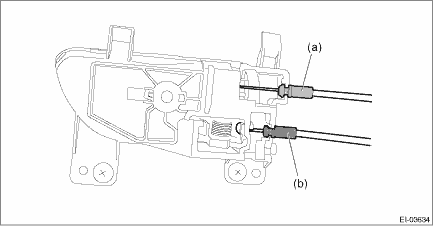

1. Before installation, check the following items. • Cable is free from deformation such as fray. • Grease is applied sufficiently to cable joints. If grease is insufficient, add it as necessary before assembling the cable. 2. Install the removed parts to the trim panel - door. 3. Install the trim panel - door. NOTE: Attach the door lock cable (a - end ball: small) to the upper side, and attach the door open cable (b - end ball: large) to the lower side.
4. Connect the ground terminal to battery sensor. NOTE |
Assembly
1. Bend the claws while pushing the weather strip - door INN against the trim panel - door so that there is no gap.CAUTION:Beware of the direction of folding the claws.(a)Rivet(b)Direction of folding ...
Disassembly
1. Remove the trim panel - door.2. Disengage the rivets and claws, and remove the weather strip - door INN from the trim panel - door.(a)Rivet(b)Claw NOTE:Remove the rivets with a rivet cutter or nip ...
