1. Remove the trim panel - door.

2. Disengage the rivets and claws, and remove the weather strip - door INN from the trim panel - door.

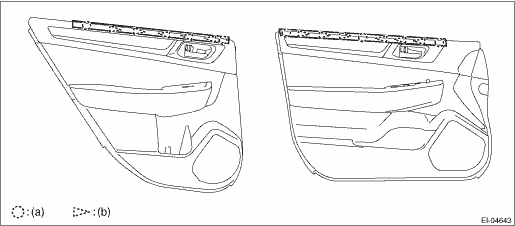

(a)

Rivet

(b)

Claw

NOTE:

Remove the rivets with a rivet cutter or nipper, etc.
