CAUTION:

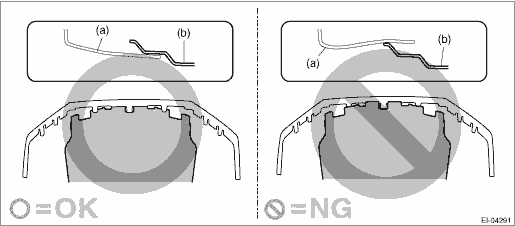

• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).

• Before installing the bumper face, match the claws on the bracket - front bumper with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.

1. Install the front grille assembly.

2. Install the bumper face - front. Front Bumper > INSTALLATION

3. Connect the ground terminal to battery sensor. NOTE

4. Adjust the fog light beam. (Model with fog light) Front Fog Light Assembly > ADJUSTMENT

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the bumper face - front. Front Bumper > REMOVAL3. Remove the front grille assembly.(1) Remove the screws on the back side.(2) Rel ...
