Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Exterior interior trim / Front grille / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

2. Remove the bumper face - front. Front Bumper > REMOVAL

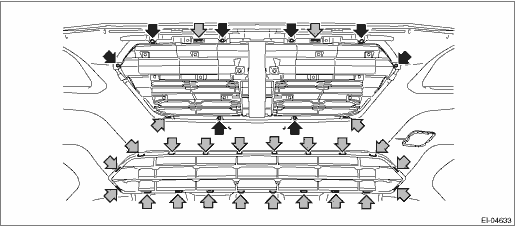

3. Remove the front grille assembly.

(1) Remove the screws on the back side.

(2) Release the claws, and remove the front grille assembly and the cover intake - front.

Installation

CAUTION:• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).• Before installing the bumper face, match the claws on the ...
