Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Fuel tank protector / Installation

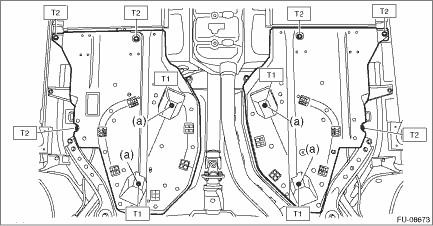

1. Install the fuel tank protector.

NOTE:

Use a new self-locking nut (a).

Tightening torque:

T1: 9 N·m (0.9 kgf-m, 6.6 ft-lb)
T2: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

2. Lower the vehicle.
