Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Fuel tank protector / Removal

1. Lift up the vehicle.

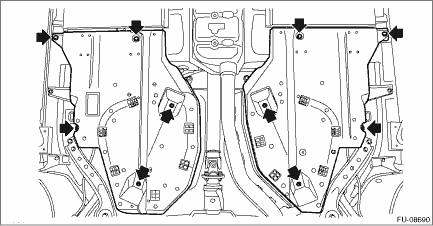

2. Remove the bolt and nuts and remove the fuel tank protector.

Installation

1. Install the fuel tank protector.NOTE:Use a new self-locking nut (a).Tightening torque:T1: 9 N·m (0.9 kgf-m, 6.6 ft-lb) T2: 18 N·m (1.8 kgf-m, 13.3 ft-lb)2. Lower the vehicle. ...
