Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

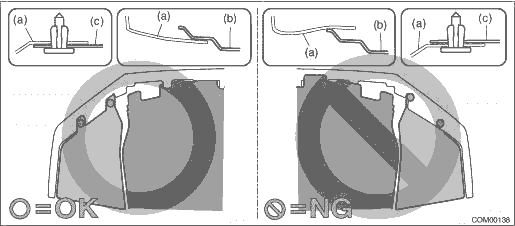

CAUTION: Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).
1. Install the resistor assembly - daytime running light. CAUTION: Be careful not to allow the harness to interfere with vehicle body, etc. and prevent excessive force from being applied. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb) 2. Install the bumper face - front. 3. Connect the ground terminal to battery sensor. NOTE 4. Adjust the front fog light beam. (Model with front fog light) Front Fog Light Assembly > ADJUSTMENT |
Inspection
1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsStandard1 — 22 — 3Always1.82±0.07 -2. Replace the resistor assembly - daytime ...
