Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Front fog light bulb / Installation

CAUTION:

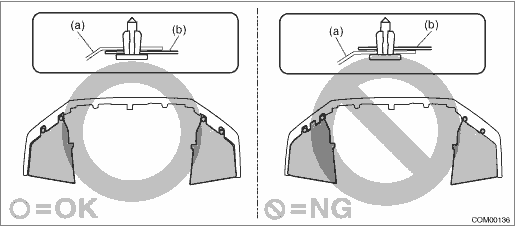

Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).

CAUTION:

After connecting the connector, make sure that the bulb is locked securely.

1. Install the front fog light bulb. Front Fog Light Assembly > ASSEMBLY

2. Install the mud guard - front.

3. Connect the ground terminal to battery sensor. NOTE

Removal

1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the clips, and turn over the mud guard - front.3. Remove the front fog light bulb. Front Fog Light Assembly > DISASSEMBLY ...
