Subaru Legacy BN/BS (2015-2019) Service Manual: Removal

Subaru Legacy BN/BS (2015-2019) Service Manual / Lighting system / Front fog light bulb / Removal

1. Disconnect the ground terminal from battery sensor. NOTE

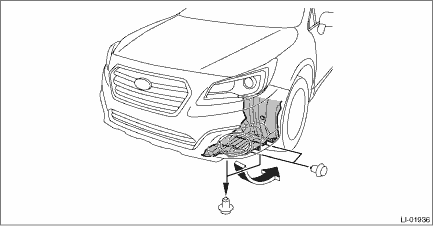

2. Remove the clips, and turn over the mud guard - front.

3. Remove the front fog light bulb. Front Fog Light Assembly > DISASSEMBLY
