1. CROSSMEMBER AND CUSHION RUBBER

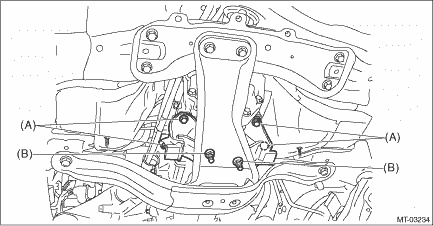

1. Install the transmission cushion rubber to the transmission, and tighten the bolt (A).

2. Install the transmission cushion rubber to the center crossmember, and temporarily tighten the nut (B).

Tightening torque:

Bolt (A)

35 N·m (3.6 kgf-m, 25.8 ft-lb)

3. Install the front crossmember and rear crossmember.

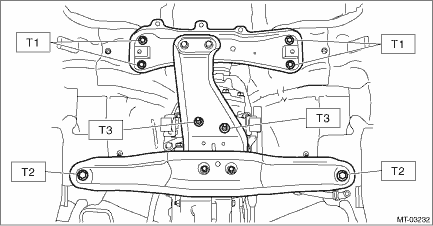

4. Tighten the transmission cushion rubber mounting nut.

Tightening torque:

T1: 75 N·m (7.6 kgf-m, 55.3 ft-lb)

T2: 140 N·m (14.3 kgf-m, 103.3 ft-lb)

T3: 35 N·m (3.6 kgf-m, 25.8 ft-lb)

5. Remove the transmission jack.

6. Install the center exhaust cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

7. Install the center exhaust pipe (rear). Center Exhaust Pipe > INSTALLATION

8. Install the front under cover. Front Under Cover > INSTALLATION

9. Lower the vehicle.

10. Connect the ground terminal to battery sensor. NOTE

Inspection

Check the following; repair or replace the faulty parts.1. CROSSMEMBER AND CUSHION RUBBERCheck the crossmember for bending or damage. Check that the cushion rubber does not have hardening, cracks or o ...
