Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

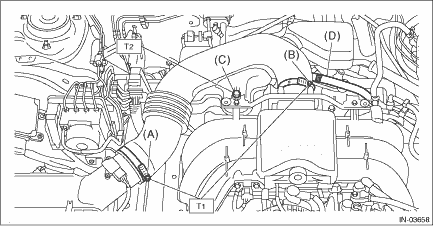

1. Install the air intake boot and connect the blow-by hose (D) to the air intake boot. 2. Tighten the clamp (B) securing the throttle body to the air intake boot. 3. Tighten the bolt (C) securing the air intake boot to the collector cover bracket. 4. Tighten the clamp (A) securing the air cleaner case (rear) to the air intake boot. Tightening torque: T1: 3 N·m (0.3 kgf-m, 2.2 ft-lb) T2: 6.5 N·m (0.7 kgf-m, 4.8 ft-lb)
5. Install the collector cover. |
Inspection
1. Check that the air intake boot has no deformation, cracks or other damages.2. Inspect that no foreign objects are mixed in the air intake boot. ...
