Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Starting charging systems(h6do) / Battery / Installation

1. BATTERY

1. Install the battery and battery pan.

2. Install the battery holder, and install the bolts to the battery box.

NOTE:

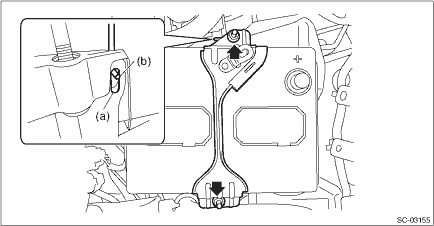

Check that the rod (b) of the battery holder is inserted into the hole (a) on the battery box and battery pan.

Tightening torque:

7.5 N·m (0.8 kgf-m, 5.5 ft-lb)

3. Connect the battery positive terminal.

4. Install the battery sensor. Battery Sensor > INSTALLATION

5. Connect the ground terminal to battery sensor. NOTE

2. BATTERY BOX

1. Install the battery box.

Tightening torque:

37 N·m (3.8 kgf-m, 27.3 ft-lb)

2. Install the battery. Battery > INSTALLATION
